Product Description
MADE IN JAPAN

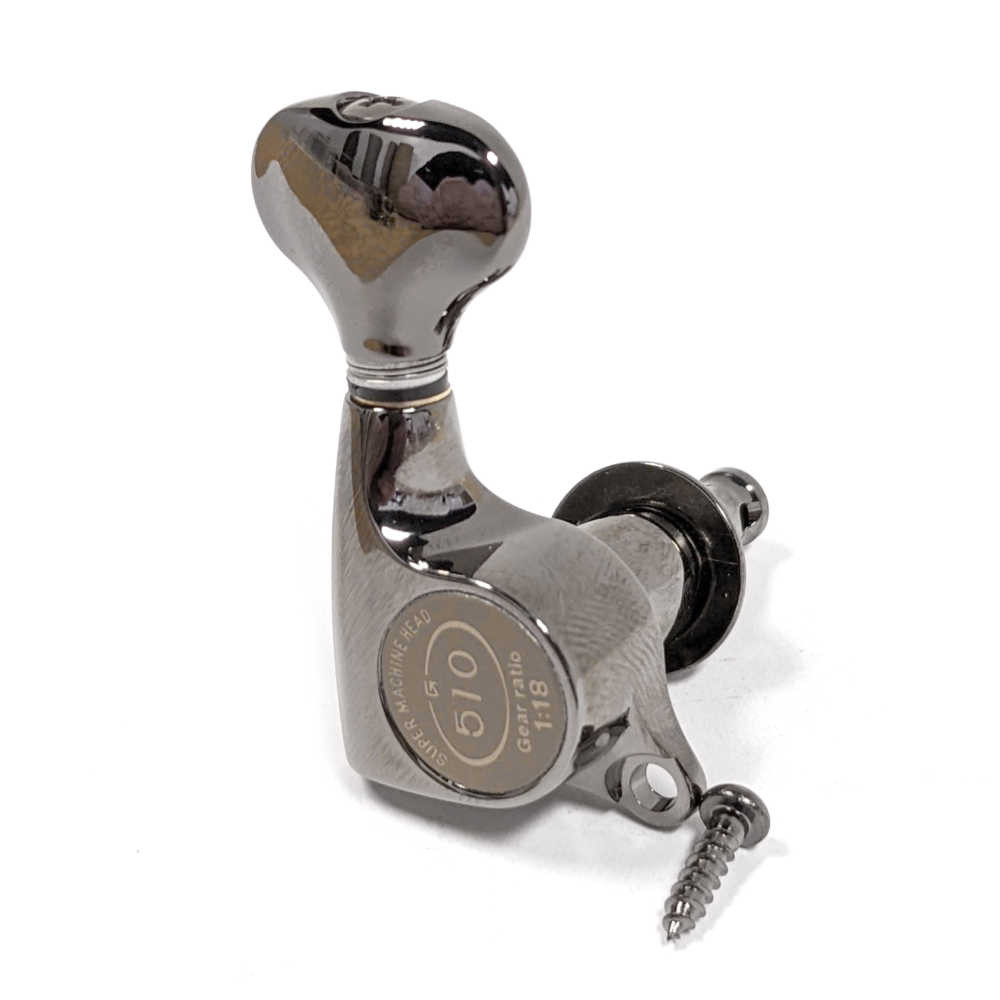

The SGS510Z is Gotoh's flagship tuner with its 1:18 gear ratio, precision fitted gears, high quality finish, and superb aesthetics. They mount into modern 10mm holes.
Package includes all necessary mounting hardware.

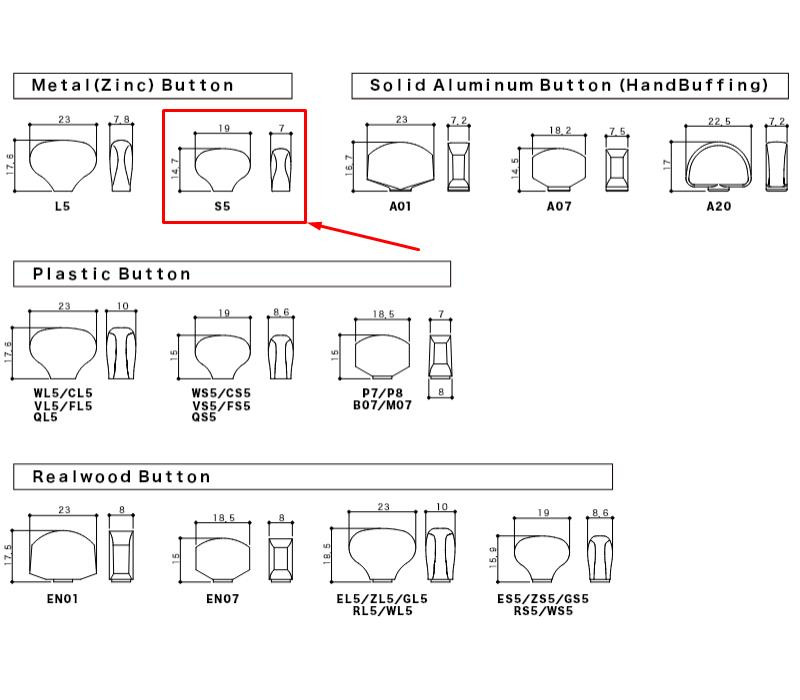

See alternate photo for dimensional drawing.
Orientation Guide:
Bass Side = Left side of the headstock = For a standard right-handed (or left-handed reverse) headstock
Treble side = Right side of the headstock = For a standard left-handed (or right-handed reverse) headstock
Next Gen Provided Mounting Details
Hole Size Required: 10mm
Bushing Type: Threaded
Maximum Headstock Thickness: 15.25mm
Minimum Hole Spacing: 23.5mm
Mount Type & Position: Single screw, 45-degree offset
