Product Description
MADE IN ENGLAND

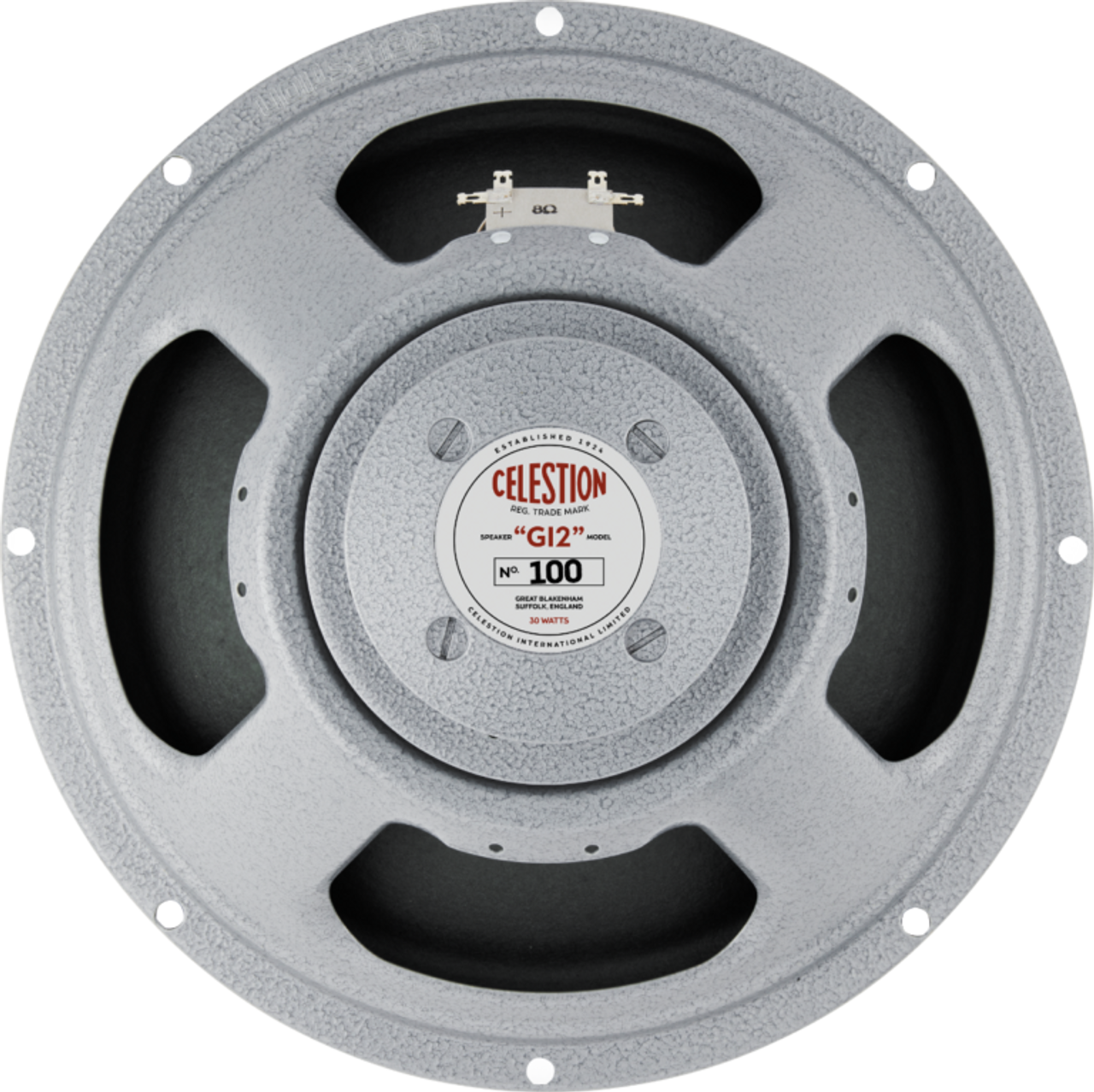

Meticulously hand-crafted in the UK, the Celestion 100 celebrates the world’s first purpose-built guitar loudspeaker which, in various guises, has voiced some of the most legendary and memorable riffs and solos of all time.
Referencing our own collection of early alnico speakers, the Celestion 100 is born of a painstaking research and development process, analysing, understanding and then replicating the very essence and tone of these exquisite collector’s items in a speaker that looks as great as it sounds.
SPECIFICATIONS
Nominal Diameter: 12.0", 305 mm
Power Rated: 30 Wrms
Nominal Impedance: 8 ohms
Sensitivity: 100.0 db 1w/1m
Chassis Type: Pressed steel
Voice Coil Diameter: 1.75", 44 mm
Voice Coil Material: Round copper
Magnet Type: Ceramic
Magnet Weight: 50.0 oz, 1420.0 grams
Freq. Response: 75.0 Hz-5.0 kHz
Resonance Frequency, Fs: 75 Hz
DC Resistance, Re: 11.8 ohms
MOUNTING INFORMATION
Baffle Hole Diameter: 11.1", 283 mm
Overall Diameter: 12.2", 309 mm
Magnet Structure Diameter: 4.1", 297 mm
Mounting Slot Dimensions: 0.31", 7.9 mm
Mounting Slot PCD: 11.7", 297 mm
Number of Mounting Holes: 8
Depth: 6.1", 155.0 mm
Net Weight: 8.8 lbs, 4.0 kg
Shipping Weight: 10.5 lbs, 4.8 kg
