Product Description
Deluxe Reverb style

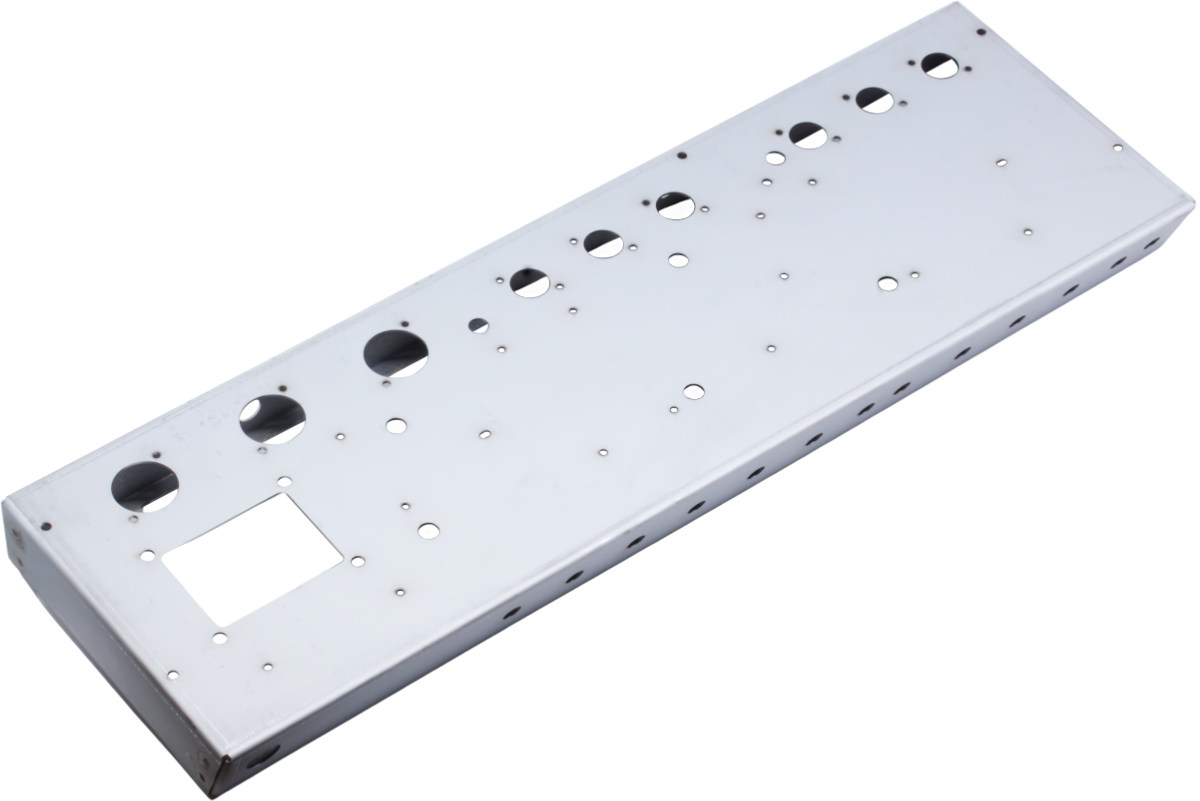

Mid-60s blackface style chassis for the AB763 22W reverb amplifier. The 22W AB763 is a dual channel, mid-power amp with tone controls, an optical vibrato effect, and a spring reverb effect. This chassis is compatible with the popular Belton octal sockets as well as with the Belton noval sockets. This steel chassis pairs with the P-H724-F front panel and the P-H724-R rear panel. See P-HEYE-5 for a compatible main fiberboard set, P-HEYE-6 for the bias board, and P-HEYE-7 for the capacitor board.
Note: The required P-H711-A capacitor cover is sold separately.
- 16 gauge steel
- Predrilled for original style configuration
- 8-Pin (Octal) socket holes: 3
- 9-Pin (miniature) socket holes: 6
- Chassis Dimensions: 22.375” x 7.06” x 1.78”
