Product Description
MADE IN JAPAN

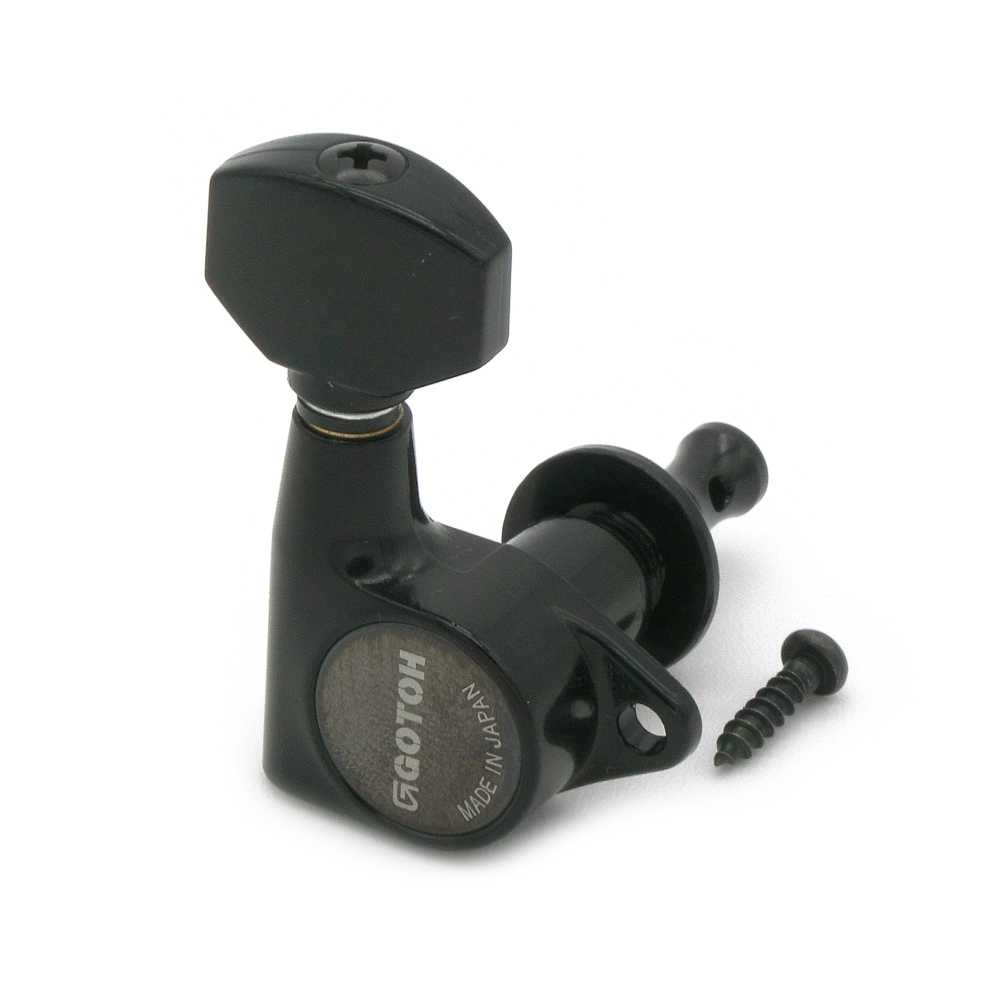

The SG301 is Gotoh's standard centered/straight screw mount tuner with a 1:18 gear ratio with 22.2mm posts. They mount into modern 10mm holes.
Package includes all necessary mounting hardware.

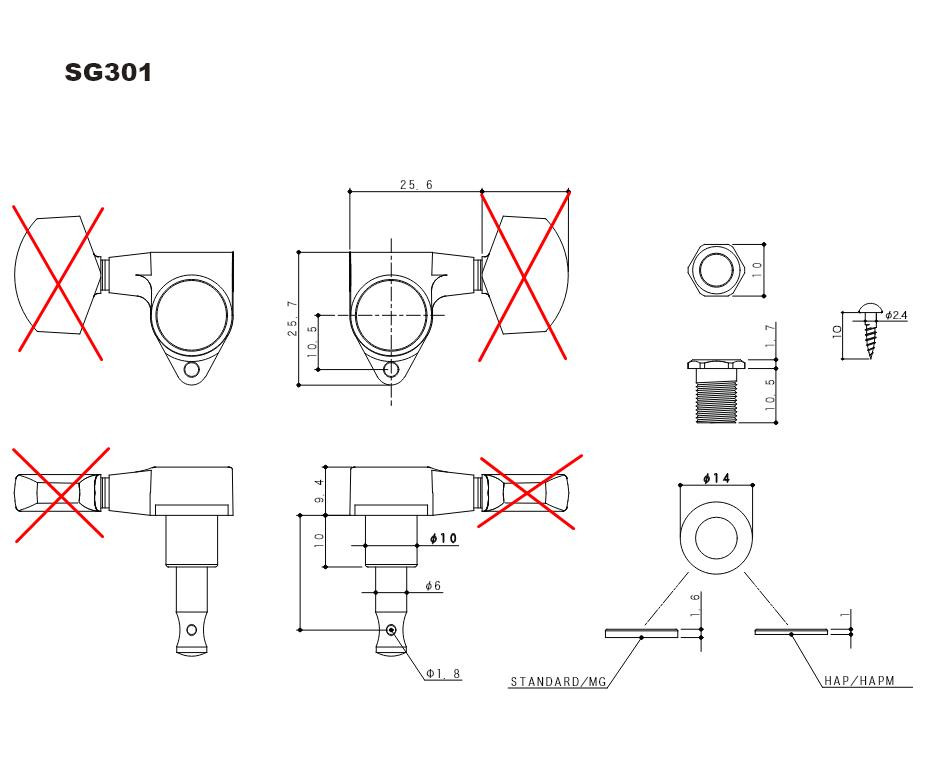

See alternate photo for dimensional drawing.
Next Gen Provided Mounting Details
Hole Size Required: 10mm
Bushing Type: Threaded
Maximum Headstock Thickness: 15.25mm
Minimum Hole Spacing: 23.5mm
Mount Type & Position: Single screw, centered/straight
