Product Description
NOTE: If you are looking for a set, please purchase full sets separately. These will be more expensive. These are meant to augment sets to make 7-string+ extended-range sets. Purchase a set with one of these to make an extended range set.
MADE IN JAPAN
The SG381 is Gotoh's standard 45-degree offset screw mount tuner with a 1:16 gear ratio. The MG-T thumbwheel locking system is sleek and secure. They mount into modern 10mm holes. 20mm posts.
Package includes all necessary mounting hardware.

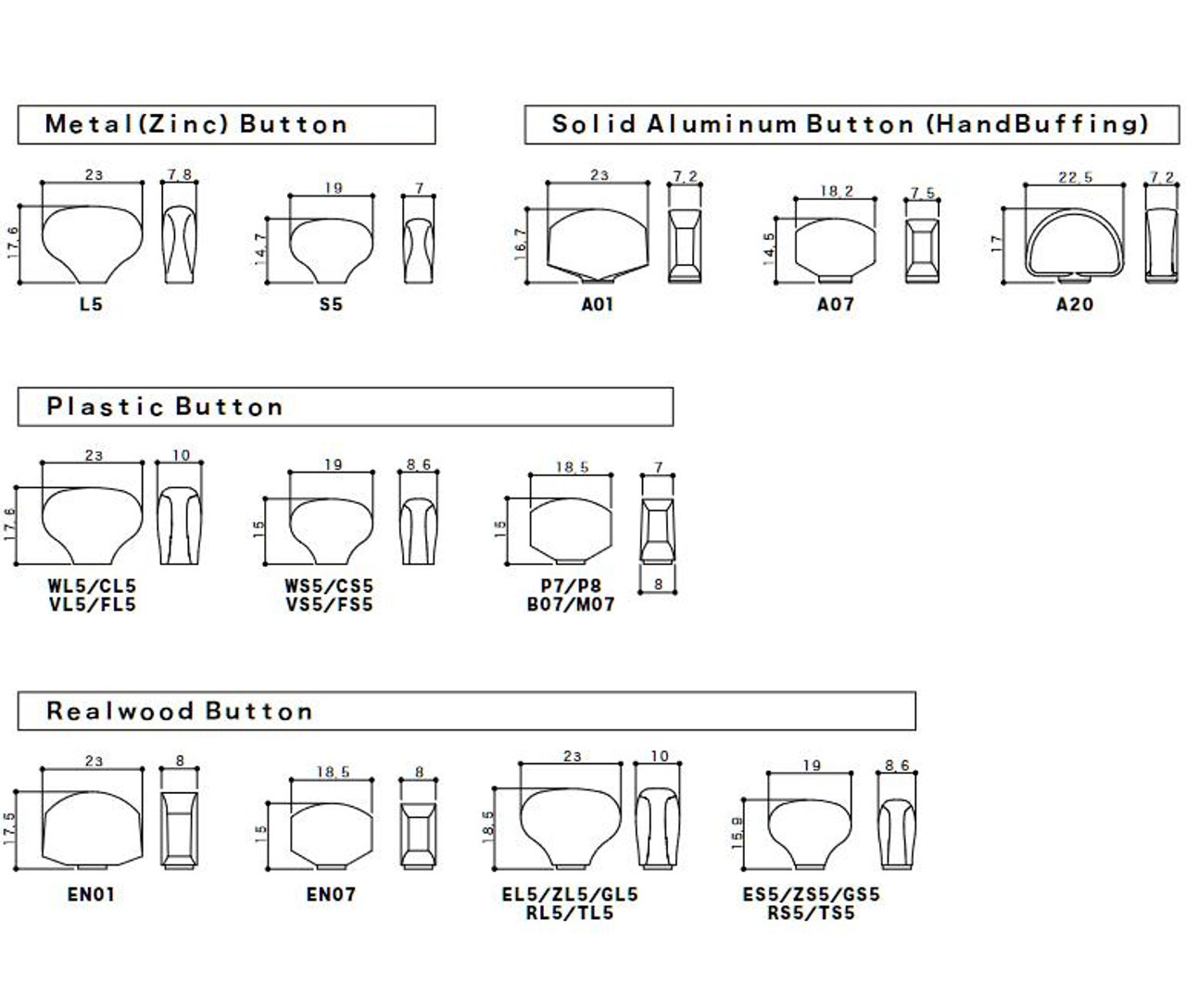

See alternate photo for dimensional drawing.
Orientation Guide:
Bass Side = Left side of the headstock = For a standard right-handed (or left-handed reverse) headstock
Treble side = Right side of the headstock = For a standard left-handed (or right-handed reverse) headstock
Next Gen Provided Mounting Details
Hole Size Required: 10mm
Bushing Type: Threaded
Maximum Headstock Thickness: 15.25mm
Minimum Hole Spacing: 23.5mm
Mount Type & Position: Single screw, 45-degree offset
